EasyCore Geo delivers low-impact, high-efficiency VibraCore sampling for environmental and geotechnical fieldwork. Built to leave a light footprint on sensitive ground, with the reach to still get to the sites heavy rigs can't.
Access roads, pads, drilling fluids, and a mobilization bill before a single core comes up. EasyCore Geo skips all of it.

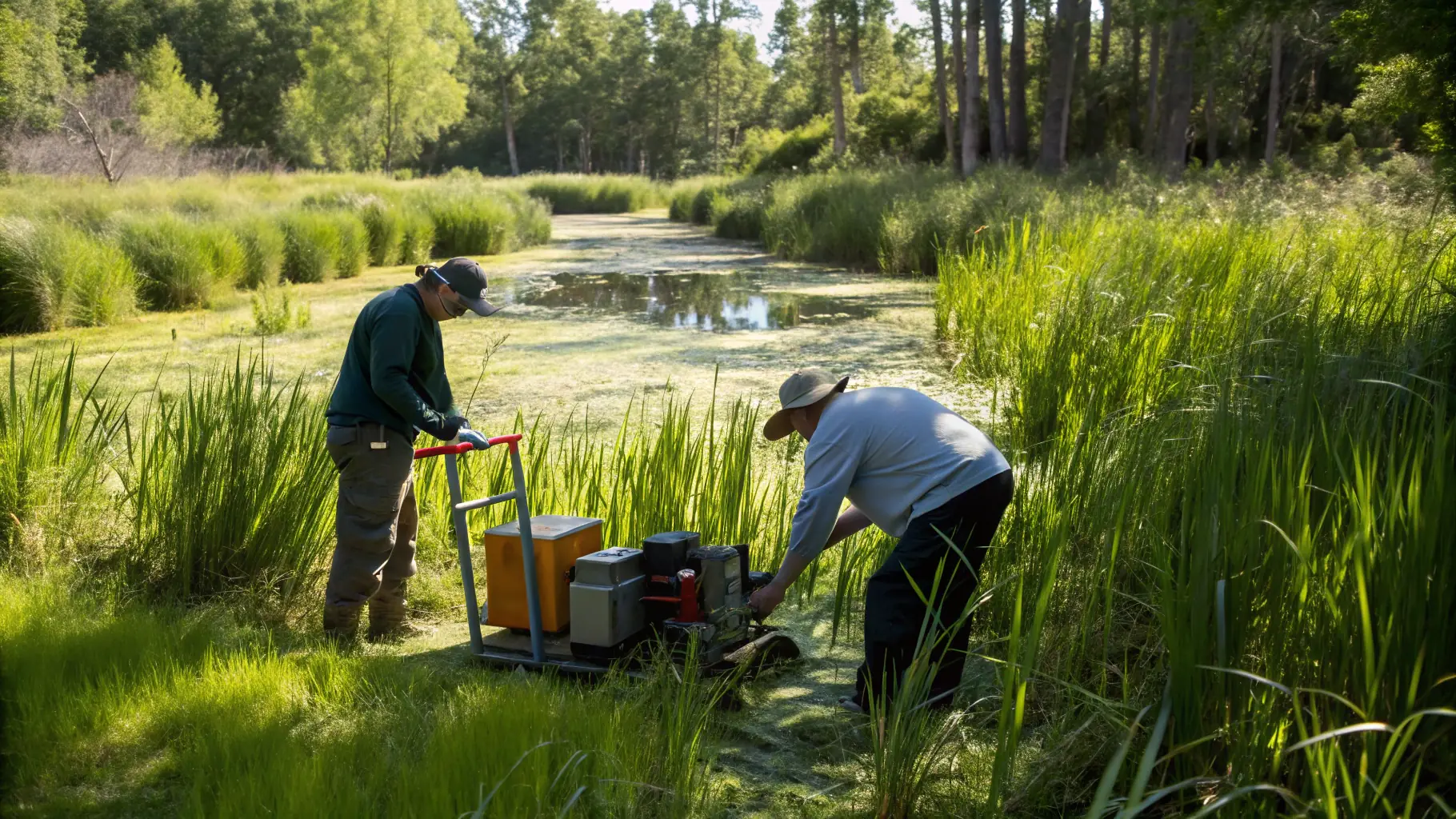

Every component is sized for two people to carry, so sampling programs aren't limited by site access.
All components come in under 1.5 m and 32 kg, so two people can carry the full kit in with no crane or heavy rig.
Side ejector for discrete-depth sampling, bailer assembly for continued advance without pulling rods, and tandem core barrels for longer runs.
Carried by helicopter, ATV, light truck, or packed in manually to sites with no road access.
No access roads, pads, or heavy equipment to bring in, so site prep and remediation costs stay well below a conventional rig.
Supports B, N, and H drill rod sizes for standard environmental and geotechnical programs.
No drilling fluids, mats, or heavy equipment, so sensitive sites stay as close to undisturbed as possible.
Pick a sector to see the access options and light footprint built for it.
Technical consulting on sampling strategy and site scoping is also available.

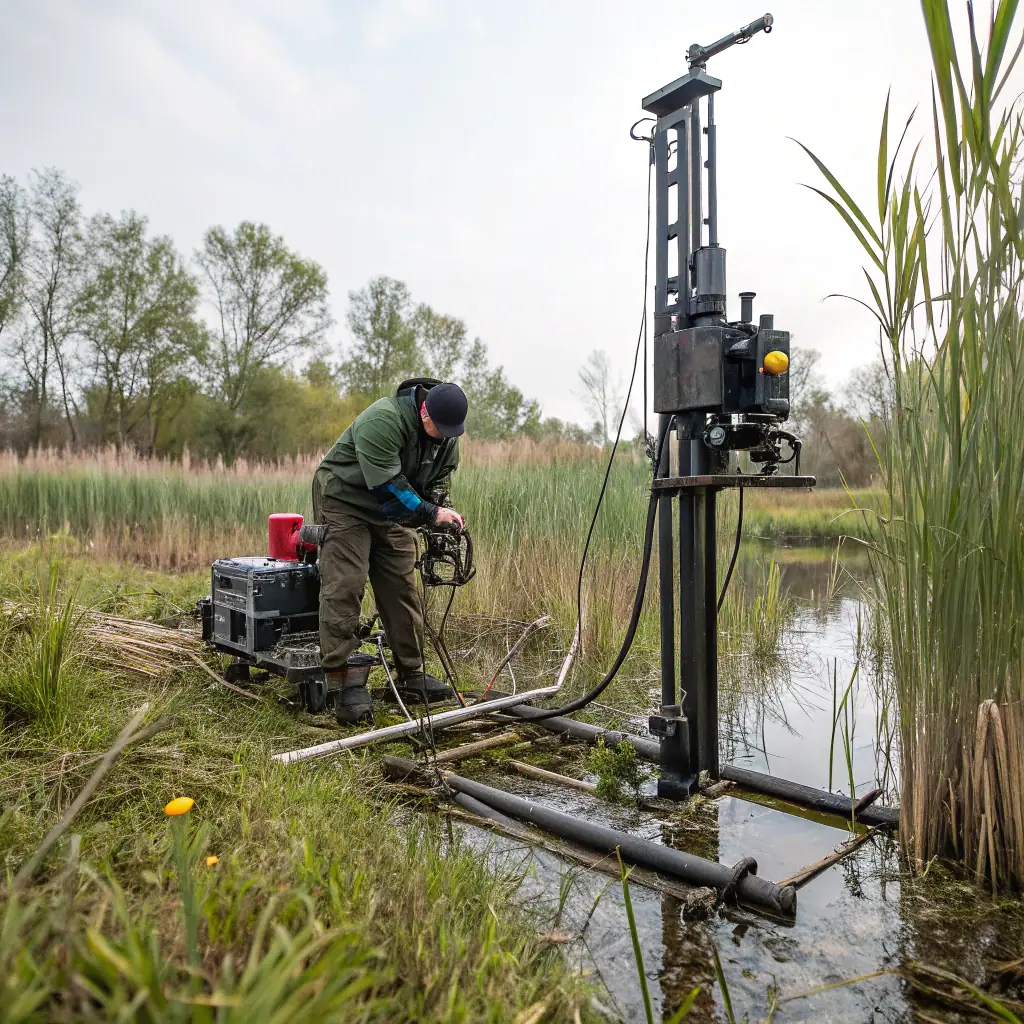

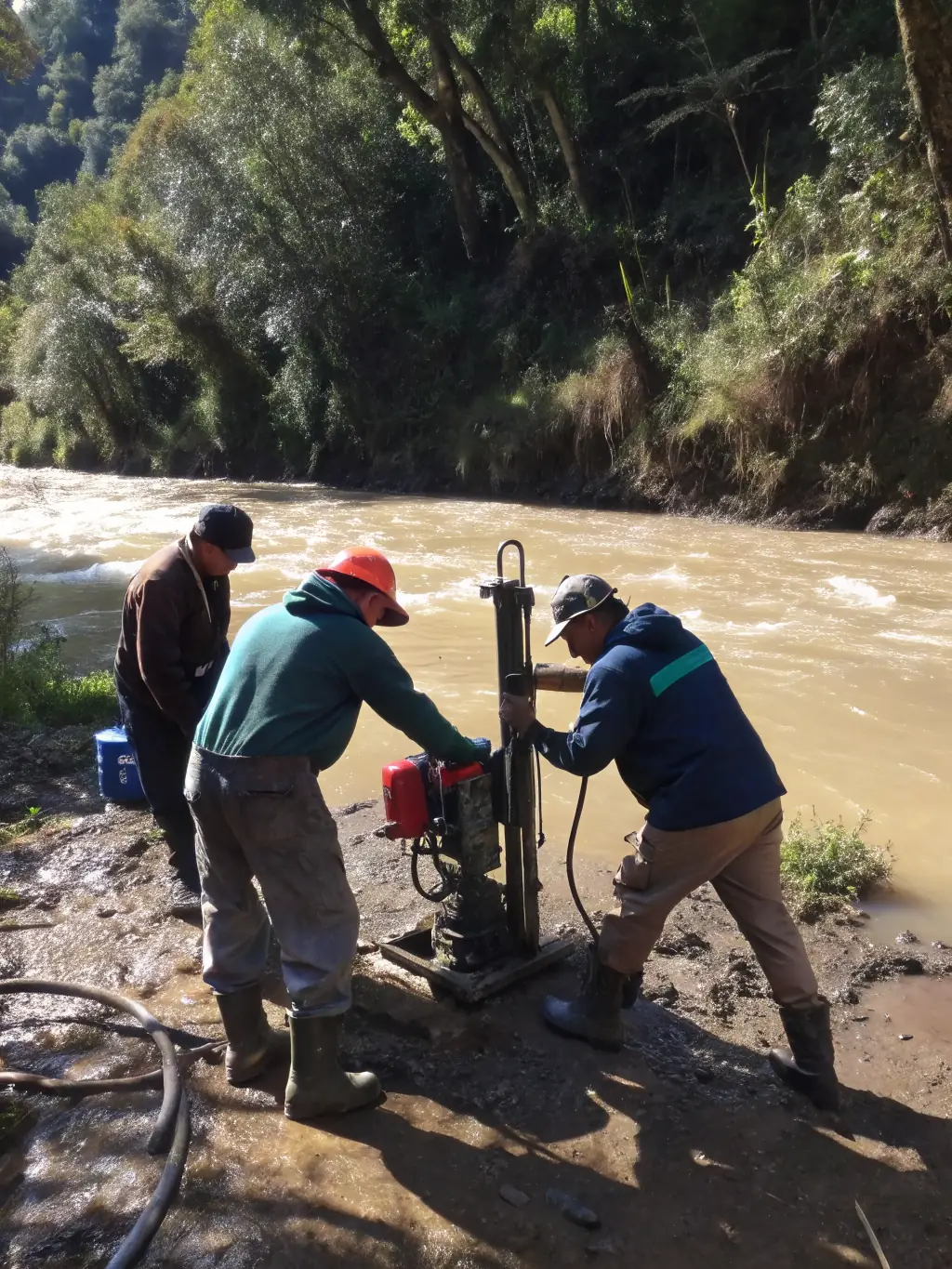

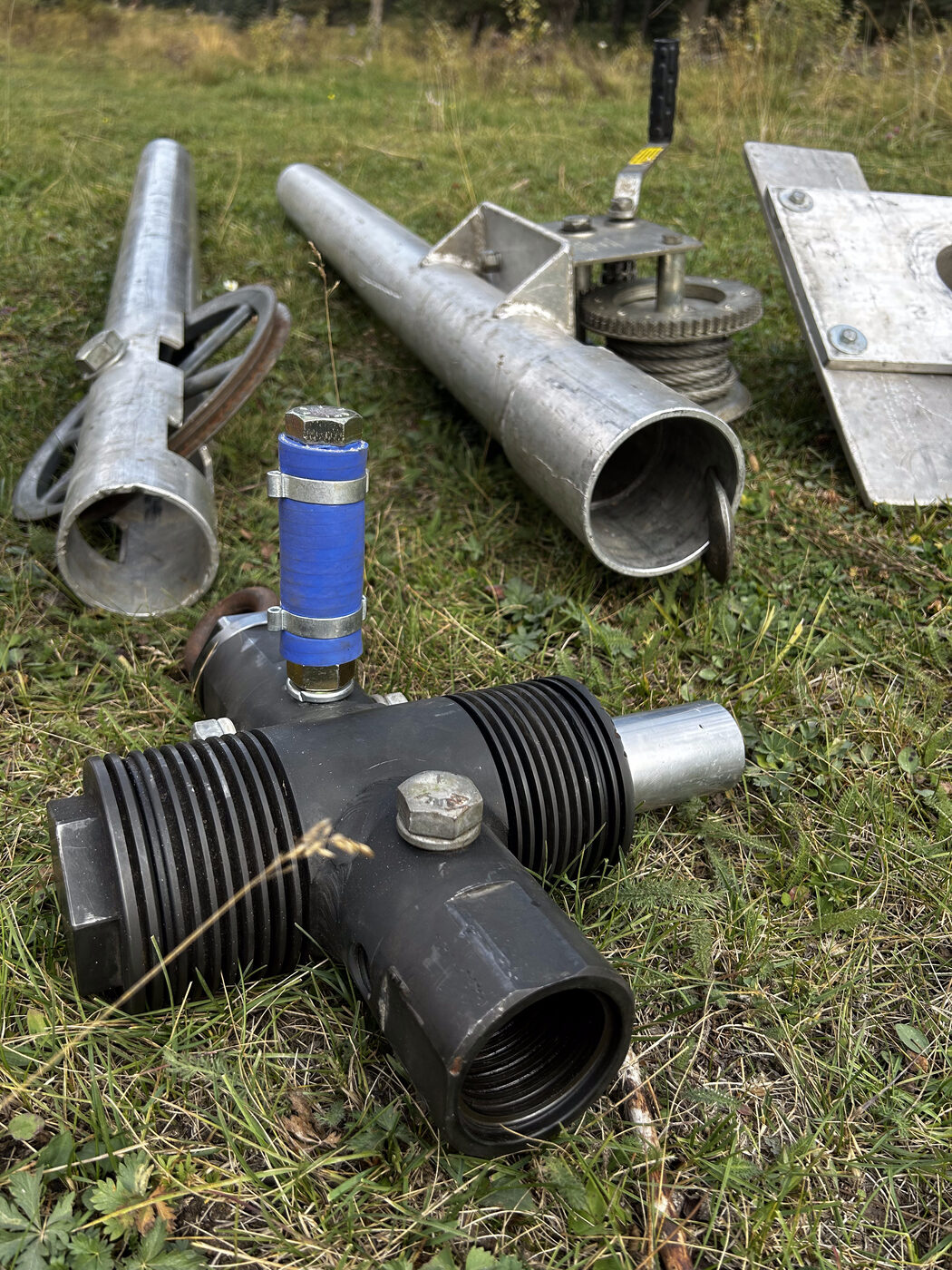

Sonic vibration coring, mechanical drive, zero drilling fluid. Built around the Wink VibraCore drill head, the system delivers sonic vibrations of 6,000–12,000 VPM through a mechanical flex cable drive, not hydraulic, so there's no hydraulic fluid on site to manage or spill. Every component is under 1.5 m and 32 kg, sized for a two-person carry, and the full system reaches a coring depth of 14 m with the hydraulic mast attached.

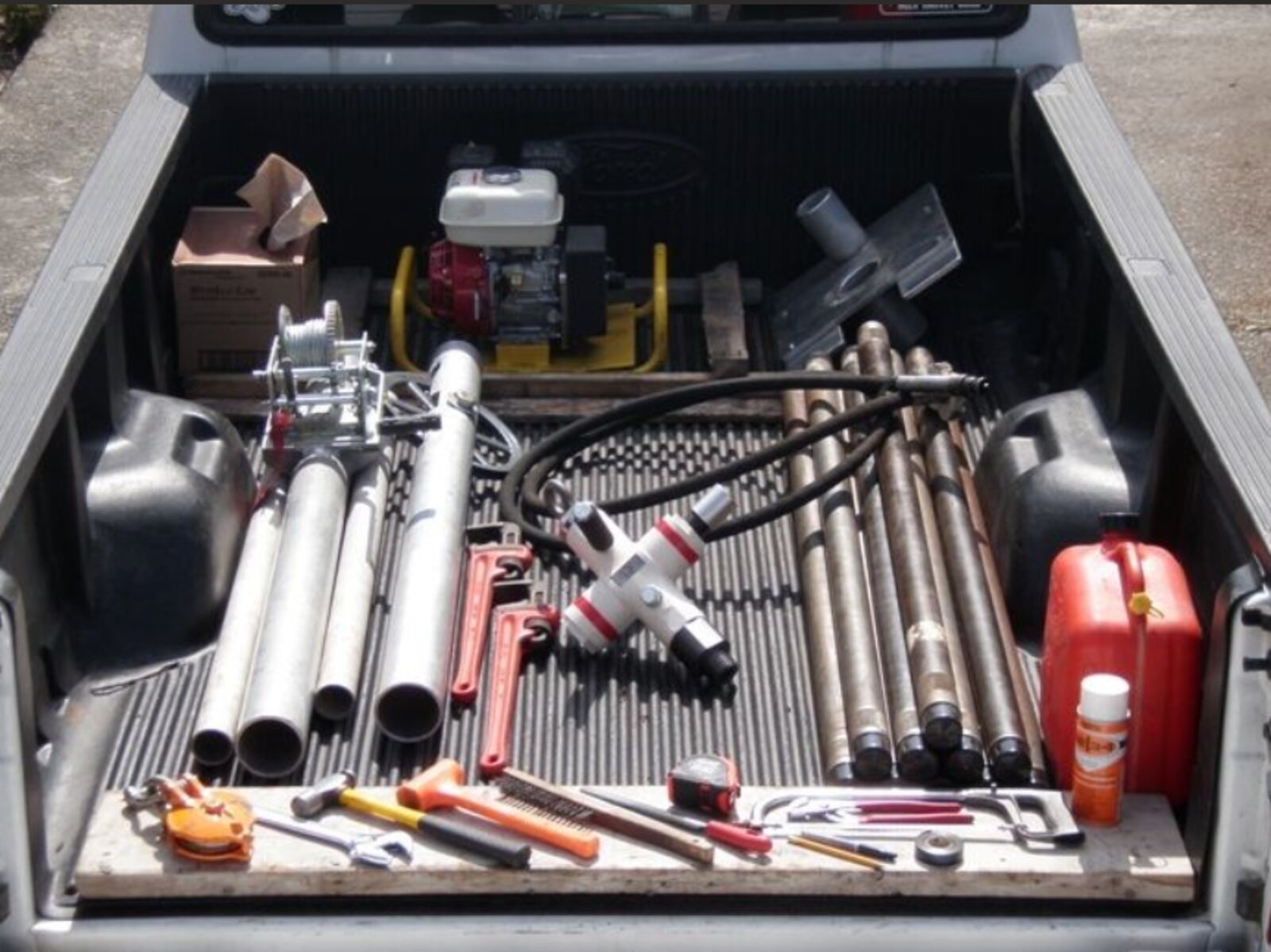

| Component | Description | Weight |
|---|---|---|
| Drill Head | Sonic vibration, 6,000–12,000 VPM | 42 lbs (19 kg) |
| Power Plant | 6.5 hp Honda (gas) | 70 lbs (32 kg) |
| Flex Cable | Mechanical rotation core drive | 29 lbs (13 kg) |
| Gin Pole & Winch | Hoisting pole + 3,200 lb pull winch | 93 lbs (42 kg) |
| Rod Type | Dimensions | Weight |
|---|---|---|
| B Rods | 2.11" OD × 1.81" ID × 1.5 m | 20 lbs |
| N Rods | 2.75" OD × 2.37" ID × 1.5 m | 26 lbs |
| H Rods | 3.5" OD × 3.06" ID × 1.5 m | 39 lbs |
EasyCore Geo Corp provides field-portable VibraCore sampling for environmental consultants, engineering firms, municipalities, and site operators across Canada. No heavy rigs, no drilling fluids, no waiting on road access. Just a two-person crew and equipment that packs in wherever the site is.
Send over the site details: access constraints, sample depth, rod size, and we'll get back to you with availability and a quote.
